The sigPOD is a universal, part assembly monitoring system that can be deployed across the production line for virtually any discrete manufacturing process.
sigPOD: The Most Flexible, Accurate Process Monitoring & Quality Control System for Manufacturing
All the features manufacturers need
Robust design, flexible connectivity, advanced reporting and data visualization are just the beginning.
Catch defects other systems miss
Sciemetric unique digital process signature waveform technology measures more datapoints than any other system for the most accurate defect detection.
Test 2x faster with sigPOD
The new sigPOD 2204 delivers 2x faster performance, a more compact design, and an even more user-friendly experience.

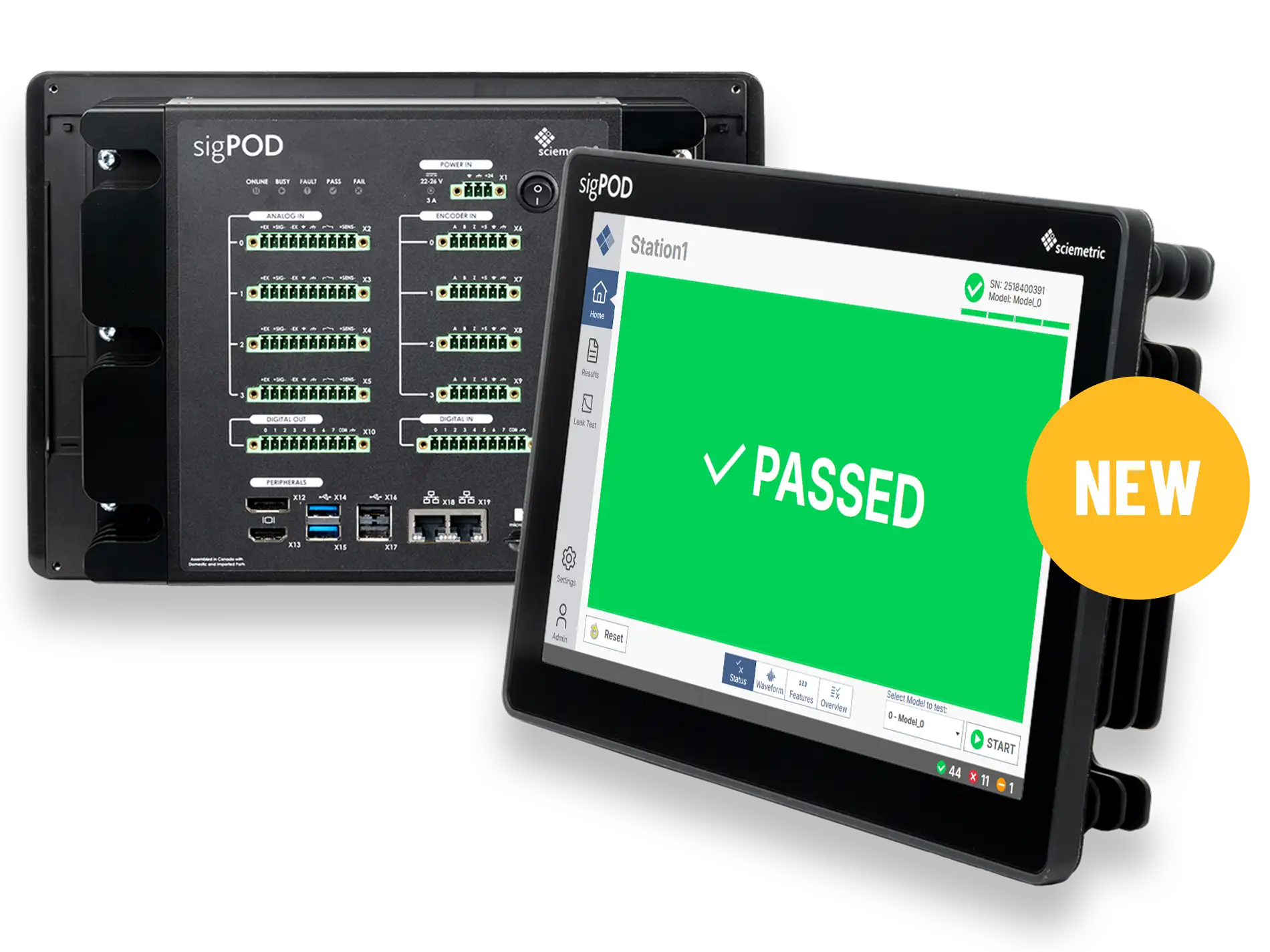

The new SigPOD 2204: Powerful performance, streamlined UX
The sigPOD system has been trusted by manufacturers across the globe for decades. The most recent model, the sigPOD 2204, continues to lead the industry. It has 2x faster performance and a more compact, user-friendly design that makes it even easier to integrate!
See New Features
Improved resolution
24-bit analog inputs and sample rates up to 125 kHz per channel
2x faster performance
Built to provide 2x faster analysis reducing overall cycle time
More compact design
Smaller footprint makes it easy to integrate and scale your solutions
Increased testing flexibility
4 analog channels on the standard model and expandable up to 20 total analog channels
User-friendly
Simple point-and-click configuration, touchscreen interface option
Ultimate usability
MicroSD card for simple exchange/replacement (10,000 test records)
Efficient design and function
Fewer internal cables, no internal fan
New reporting interface
Fresh new sigPOD UI makes it even easier to visualize part data, trends
Here's What Else You May Need To Know
About This Product
Key Specifications
- 4 test channels on the standard model sigPOD 2204
- 24-bit analog inputs and sample rates up to 125 kHz per channel
- Compact: 9.65 x 7.52 x 2.05 in (245 x 191 x 52 mm) without integrated touchscreen; 11.89 x 8.27 x 2.68 in (302 x 210 x 68) with touchscreen
- Optional 12.1” integrated touchscreen with higher 1280 x 800 resolution
- 2x USB 2.0 and 2x USB 3.1
Communicates with plant floor systems
- Support for Ethernet IP, PROFINET, and Modbus TCP PLC interfaces
Expandable system
- Add sigPOD 1608 modules to expand channels up to 20 analog inputs, 8 encoders, and 24 DI and DO channels
- Add sigPOD 1618 modules to expand channels up to 20 encoder inputs
Connection Options
- 2 Ethernet ports
- 4 USB ports
- HDMI and DisplayPort display outputs
Mounting options
- Pedestal Mount
- Machine Mount
- Panel Mount with integrated screen only
- Wall Mount without integrated screen only
- DIN Rail Mount without integrated screen only
Note: If you are currently using a sigPOD 1200 model and plan to upgrade to the sigPOD 2204, the connectors, power supply, and mounting will remain the same!!
Miscellaneous options
- Integrated touchscreen
- DisplayPort to VGA adapter
- USB to 4 port RS-232 adapter
- NEMA hood
- Peripheral bundle
- Connector bundle
Free test templates to get testing faster
- Crimp Force Monitoring
- Sealant Dispense Monitoring
- Leak Testing
- Press-Fit Monitoring
- Fin Profile Scan (Profile Inspection)
- Noise & Vibration (NVH) Testing
- Torque-to-Turn Testing
- Spot Weld Monitoring
Typical Applications

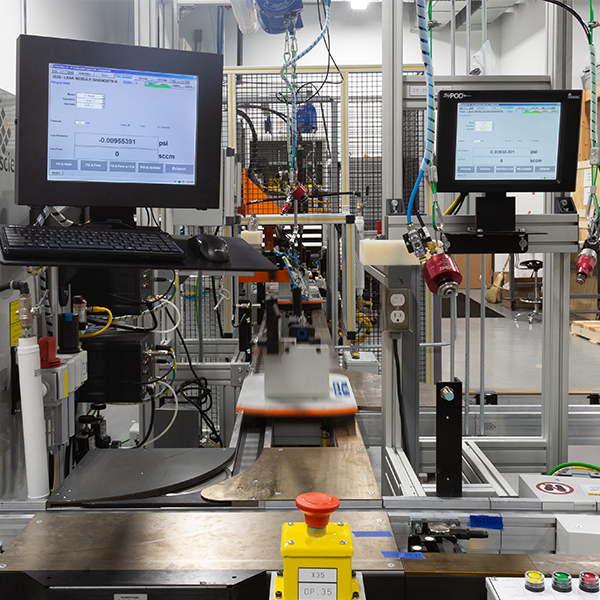

The sigPOD is used in discrete manufacturing for monitoring processes or part testing at virtually any type of assembly operation. The sigPOD can be used for crimp, dispense, press, weld monitoring, profile inspection, torque-to-turn testing, NVH testing, leak testing, engine cold testing, end-of-line (EOL) testing, functional testing, and more!
Part production generates a lot of data—and Sciemetric makes it easy to manage!
Sciemetric’s QualityWorX Software works alongside the sigPOD to make it easy to collect and store your process data, from one process to many across the manufacturing line—and offers the data analytics tools to trace root cause and improve your processes.
